Tilt Five Holographic Gaming System

A TILT FIVE GAME NIGHT IS A SCI-FI FEVER DREAM COME TO LIFE.

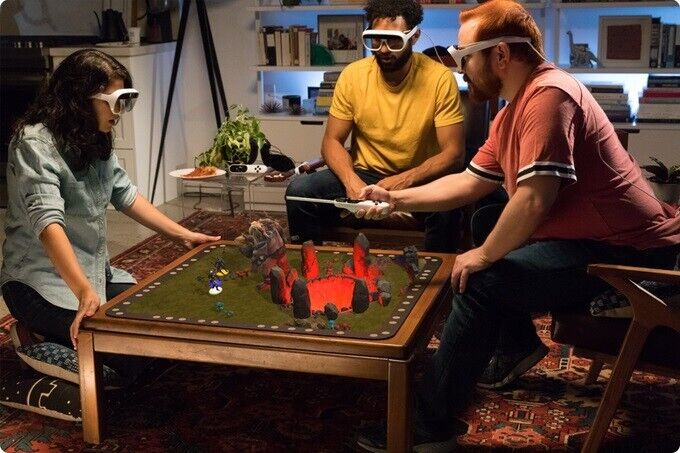

Friends facing off, face to face, over virtual battlefields. Holograms are f’n real. You’re welcome.

ADVENTURE TOGETHER THRU VIRTUAL WORLDS

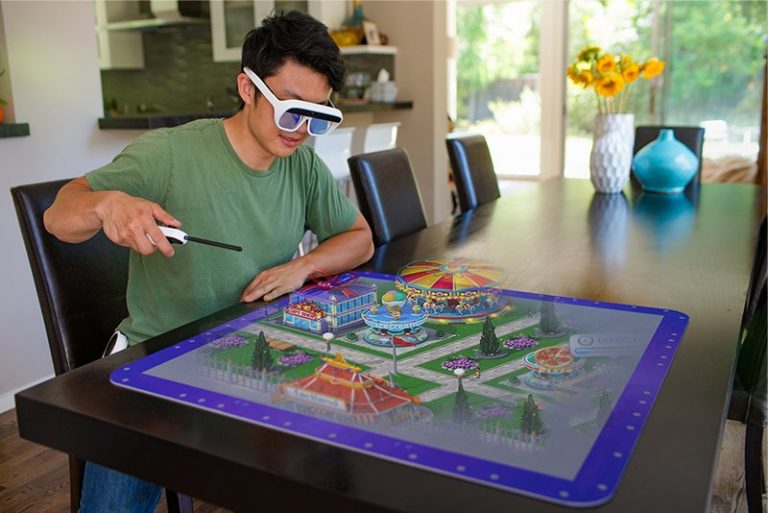

Tilt Five turns your table into a portal into virtual worlds.

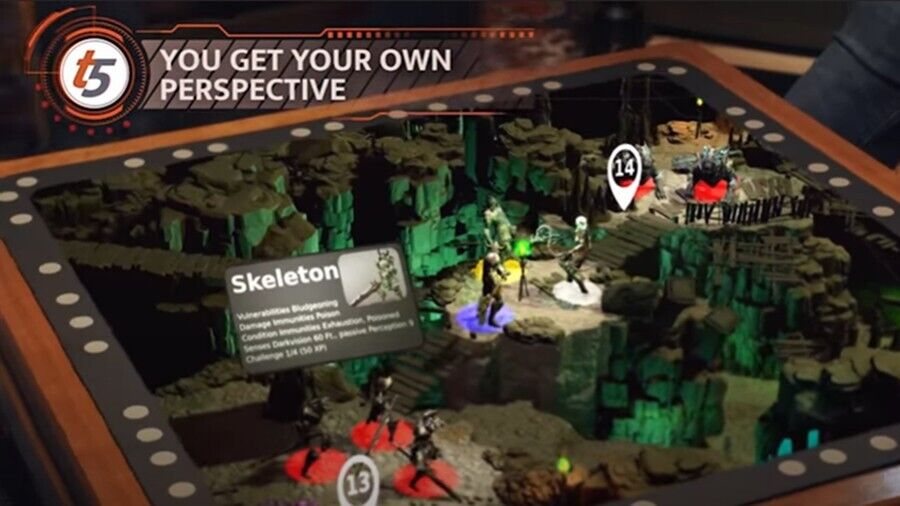

COMPETE WITH PEEK-FREE SPLITSCREEN.

Everyone gets their own perspective with private information.

FULL TECH SPECS:

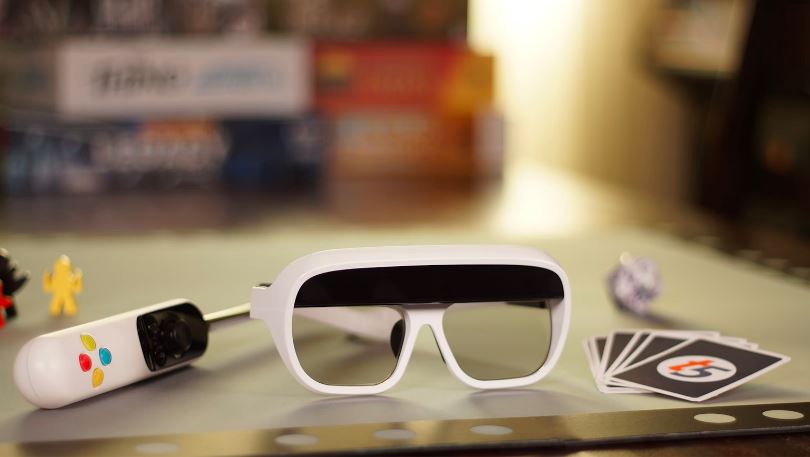

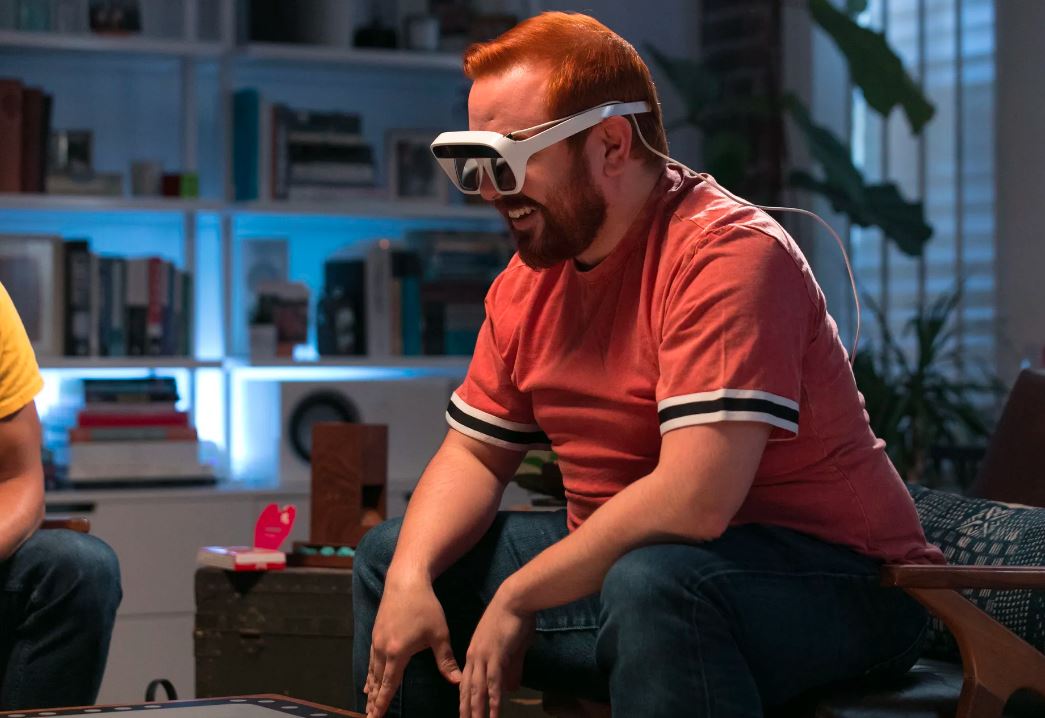

Glasses:

• ~100g (~3.5 ounces)
• Contact surface material: Silicone Rubber
• 1.5m cable. (4.9 ft)
• Dual HD 1280x720 LCOS pico-projectors
• 110 degree FOV
• 85% efficient beam steering lenses
• Brightness: 0.65 Lumens
• 8-megapixel infrared camera for head tracking
• 8-megapixel infrared programable computer vision camera for tangible tracking
• Onboard IMU
• Intel Movidius Chip for 180 fps Reprojection
• Stereo Speakers
• Microphone
• USB 3.0
• USB Type C connector (includes c to a adapter)
• Connects to Windows PC or Android Device
• Powered by host device (no onboard batteries or power components)
• Bluetooth-like connection with wand

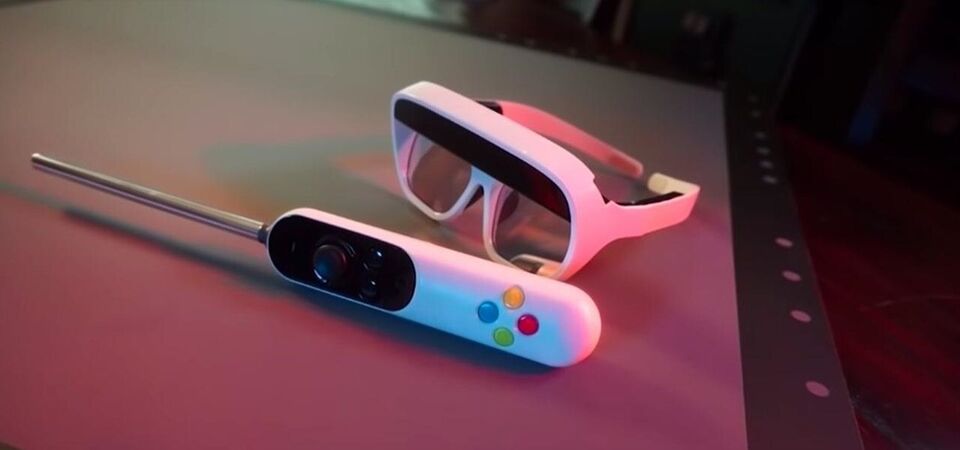

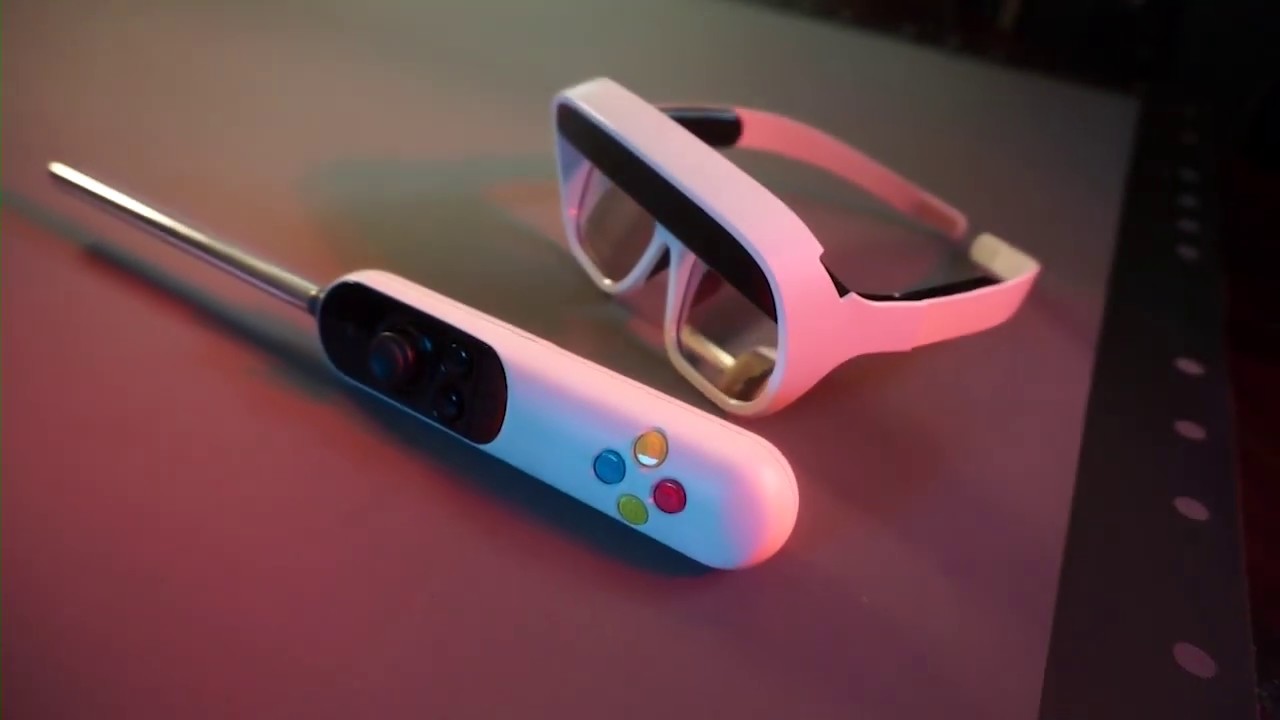

Wand:

• Dimensions: 47mm x 320mm x 38mm (1.85" x 12.6" x 1.5")
• Weight: 88 grams (3.1 ounces)
• Internal IMU
• 6 DOF (degrees of freedom)
• Trigger
• Joystick
• 7 buttons
• Bluetooth-like connection to glasses
• LED-status light
• Requires 2 AA batteries
• Haptic Motor

Gameboards:

XE Gameboard

• Folded: 266.67mm x 400mm (10.5" x 15.75")
• Unfolded: 800mm x 1066.7mm (31.5" x 42")
• Tracking Markers
• Occlusion
• See into infinity
• Retroflector material
• Kickstand‍

LE Gameboard

• 800mm x 800mm
• Tracking Markers
• Occlusion
• See into infinity
• Retroflector material
