Product Description:

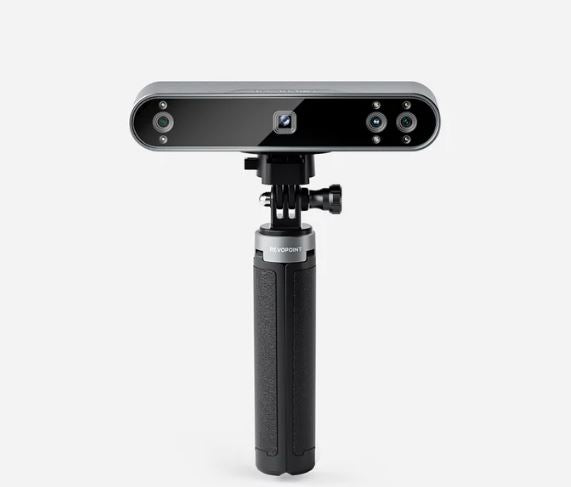

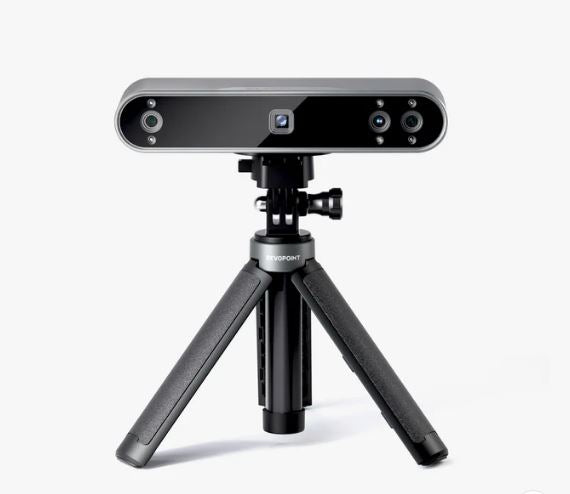

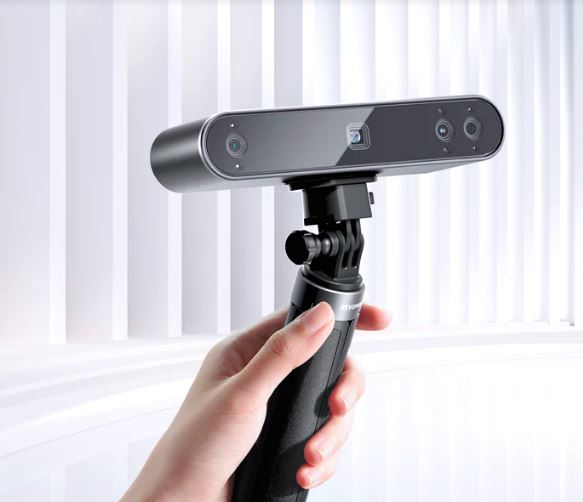

POP 3 is the next-gen 3D scanner from the POP series with new and improved hardware, design, and usability. The improvements in POP 3's capabilities make capturing 3D scans for 3D printing, 3D animation, reverse engineering, healthcare, product design, digitizing historical items, VR/AR, and more even easier.
Intelligent Scanning
Enjoy seamless tracking and frame stitching with POP 3’s 9-axis IMU (Inertial Measurement Unit). It continuously measures the scanner’s movement and helps to eliminate faulty frames caused by fast movement or shaking.
Time-Saving Accuracy
Achieve a single-frame precision of up to 0.05mm at up to 18fps for lightning-fast scans and reliable 3D model accuracy!
Better Color Accuracy
Get improved color and texture accuracy through the RGB camera’s bigger aperture capturing more light and dual white LEDs providing supporting illumination to eliminate shadows and make the colors vibrant.
Enhanced Marker Tracking
Capture scans using marker points faster and more reliably with dual infrared LEDs mounted next to both depth cameras providing extra light for better marker point tracking.
More Control
Easily control your POP 3 with its three new touch-sensitive buttons that pause/start scanning and control the depth cameras' exposure.
| Specifications | Details |
|---|---|
| Product Name | Revopoint POP 3 |
| Technology | Dual-camera Infrared Structured Light |
| Single-frame Accuracy, up to | 0.1 mm |
| Single-frame Precision, up to | 0.05 mm |
| Scanning Speed, up to | 18 fps |
| Fused Point Distance, up to | 0.05 mm |
| Single Capture Area at Nearest Distance | 61 x 68 mm at 150 mm |
| Single Capture Area at Furthest Distance | 244 x 180 mm at 400 mm |
| Scanning Type | Handheld and Desktop |
| Working Distance | 150 - 400 mm |
| Minimum Scan Volume | 20 x 20 x 20 mm |
| Maximum Scan Volume | 2500 x 2500 x 2500 mm |
| Auxiliary Lighting | Infrared Fill Lights, White Flash LEDs |
| Angular Field of View, H x W | 40 x 25° |
| CPU | 2 core, 1.6GHz |
| Position Sensors | 9-axis IMU |
| Scanner Weight | 190 g |
| Dimensions (L x W x H) | 153 x 45 x 29 mm |
| Tracking Methods | Feature, Marker |
| Buttons | 3 |
| Connector Type | USB Type-C |
| Power Requirements | DC 5V, 1A |
| Wi-Fi Type | Wi-Fi 6 |
| Bluetooth | 4.1 |
| Compatible Systems | Windows 10/11 (64-bit), Android, iOS, macOS |
| Recommended PC Requirements | Intel Core i7, 16 GB RAM or better |
| Special Object Scanning | Use scanning spray for transparent, dark, or highly reflective objects |
| Scanning Environment | Indoors and Outdoors |
| Output Formats | PLY, OBJ, and STL |
| Ready to Print 3D Models | Yes |
| PC Requirements (macOS) | RAM: ≥8GB<br>CPU (or better): M1 Pro/M1 Max/M1 Ultra, M2/M2 Pro/M2 Max/M2 Ultra, M3/M3 Pro/M3 Max |
| PC Requirements (Windows) | RAM: ≥16GB<br>CPU (or better): i5 12th/13th/14th, i7 12th/13th/14th, i9 all series |
